Robotics and Programming Kits 2.0
Prime Code, Python Edition, Mecha Builder, Game Maker, Basic & Advanced
Python Coding Course
The Artec Robo 2.0 Prime Code – Core Set is the ideal choice for beginners and robotics enthusiasts who wish to learn Python, robotics, IoT (Internet of Things), and AI (Artificial Intelligence) in a progressive and structured manner. With a comprehensive 2-year curriculum and 96 lessons, this kit offers a complete and interactive learning experience with materials available online or through the Typora app. The course is designed to teach basic to advanced programming concepts, empowering students to build and program modern, intelligent robotic systems.
Emphasizing progressive and flexible learning, the course is perfect for beginners and provides a solid foundation for exploring advanced areas like IoT and AI.
Box Content
- 1 Studuino:bit Central Unit
- 1 Robot Expansion Unit
- 1 Battery Box
- 2 DC Motors
- 2 Servo Motors
- 1 IR Photoreflector
- 1 Color Sensor
- 1 Ultrasonic Sensor
- 1 USB Cable (MicroB)
- 1 Sensor Connection Cable (3 wires, 15 cm)
- 1 Sensor Connection Cable (3 wires, 30 cm)
- 1 Sensor Connection Cable (4 wires, 30 cm)
- 30 Basic Cubes (Various Colors)
- 8 A Triangular Blocks (Gray, Red)
- 6 Half A Blocks (Light Gray)
- 6 Half B Blocks (Gray, Black, Red)
- 20 Half C Blocks (White)
- 10 Half D Blocks (White)
- 7 Beams
- 2 Large Gears
- 2 Small Gears
- 1 Gear Track
- 1 Tire
- 2 Discs
- 6 Axles
- 1 Block Remover
System Requirements:
- Operating System (OS):
- Windows (7/8.1/10)
- Mac OS X 10.6 or later
- iOS 11 or later
- Android 5.0 or later
- Chrome OS
- CPU: Core 2 Duo (E6700) or equivalent
- Memory: 2 GB or more
- USB Port: 2.0
- Wi-Fi Connection: 802.11 b/g/n

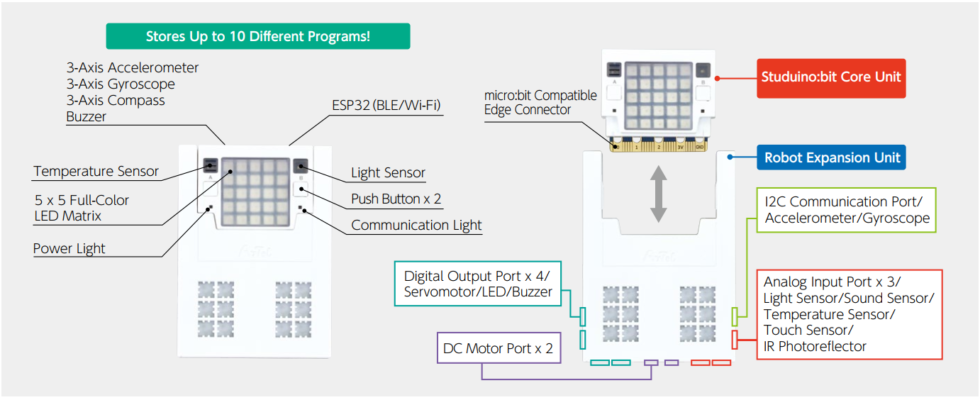

Integrated Components:
- 5×5 RGB LED Matrix
- Buzzer
- 2 Pressure Buttons
- Light Sensor
- Temperature Sensor
- 3-axis Accelerometer
- 3-axis Gyroscope
- 3-axis Compass
Studuino:bit Core Unit:
- Dimensions: 60 x 60 x 25 mm (with casing)
- USB Connector: microB
- Wi-Fi: 802.11 b/g/n
- Bluetooth: Classic, BLE4.2 (dual mode)
- SoC (System on Chip): ESP32
- Flash Memory: 8 MB
- SRAM: 520 KB
- PSRAM: 8 MB
- Clock Speed: 240 MHz
- Operating Voltage: 3.3V
- Communication Protocol: Windows/Mac
- Equipped with USB Serial Converter IC
- Power Supply: USB, 3 x AA/R6 (alkaline only)
Robot Expansion Unit:
- Dimensions: 80 x 110 x 25 mm (with casing)
- Compatible Components: Servo motors, LEDs, buzzers (up to 4), light sensor, IR photoreflector, sound sensor, touch sensor, temperature sensor (up to 3), accelerometer, gyroscope (1)
Power Supply: USB, 3 x AA/R6 (alkaline only)

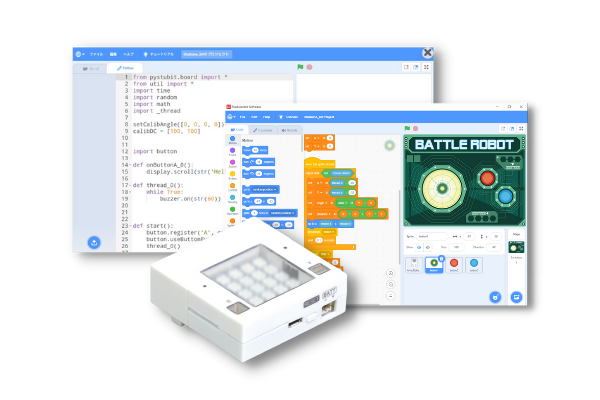

Visual Programming Software:

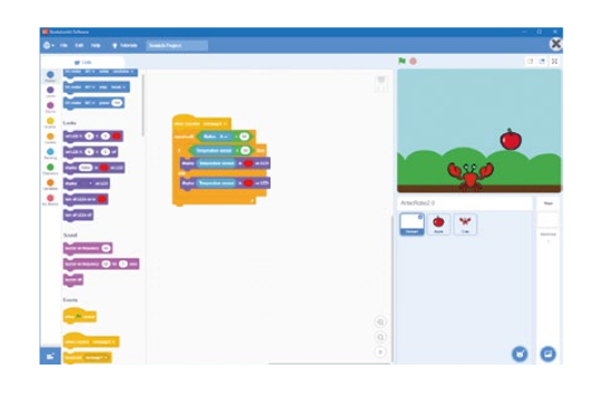

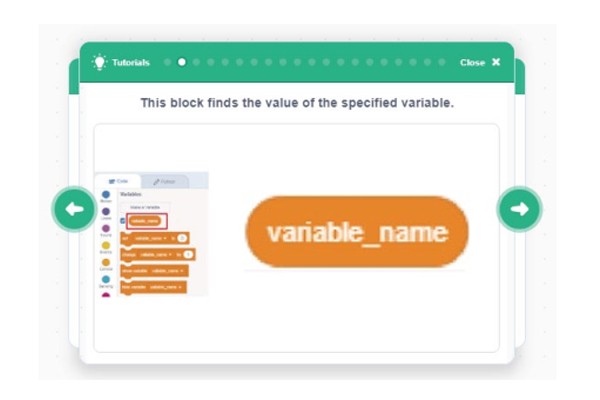

- Based on Scratch 3.0: Easy-to-use visual programming interface for beginners.

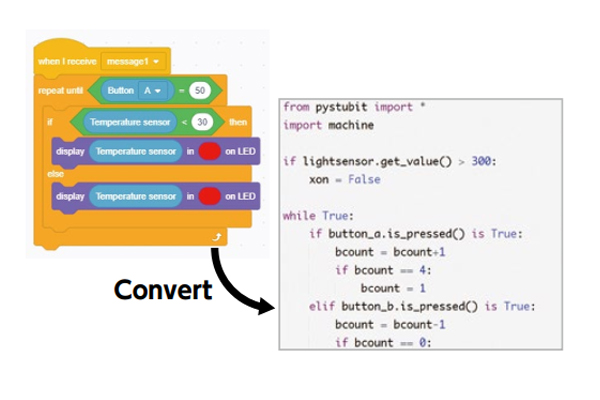

- Conversion to Python: Programs developed in the block environment can be directly converted to Python, enabling students to gradually transition to more advanced programming.
Accessible Digital Content:
- Online Tutorials: The course includes comprehensive tutorials with interactive examples to teach basic robotics programming.

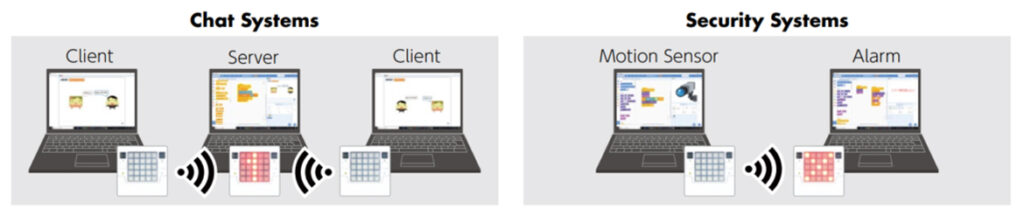

- Wi-Fi Experiments: Wi-Fi compatibility allows the creation of new experiments and interaction between the robot and network-based systems.
Additional Resources:
- Learning Apps: Materials accessible online through Typora, offering flexibility in learning.
- Step-by-Step Tutorials: Clear instructions to help students program their robots and perform interactive experiments.
Python Edition

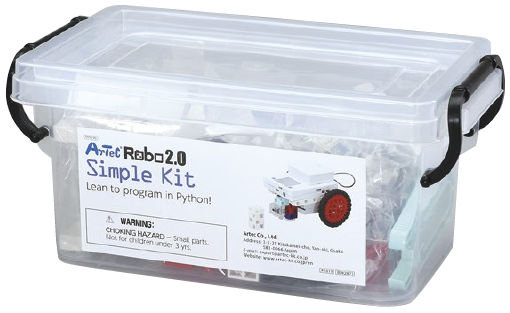

The ArtecRobo 2.0 Simple Set – Python Edition is the ideal solution for those who wish to learn and teach basic programming in Python in a simple and accessible manner. With fully illustrated textbooks and step-by-step instructions, the kit allows students of all ages to learn the fundamental concepts of programming and robotics. Additionally, the teacher’s manual provides detailed explanations about the Studuino:bit Central Unit and the Robot Expansion Unit, making the teaching process easier and offering an interactive learning experience.
Box Contents:
- 1 Studuino:bit Central Unit
- 1 Robot Expansion Unit
- 1 Battery Box
- 2 DC Motors
- 1 IR Photoreflector
- 1 USB Cable (MicroB)
- 1 Sensor Connection Cable (3 wires, 15 cm)
- 13 Basic Cubes (Red, Gray, White)
- 3 A Triangular Blocks (White)
- 2 Half A Blocks (Light Gray)
- 6 Half B Blocks (Blue)
- 4 Half C Blocks (Light Aqua)
- 2 Beams
- 2 Large Gears
- 2 Tires
- 2 Discs
- 1 Block Remover
Educational Material:
- Illustrated Books: Contains detailed, step-by-step instructions for teaching basic Python programming.
- Teacher’s Manual: Provides comprehensive explanations about the Studuino:bit Central Unit and the Robot Expansion Unit, as well as instructions on how to program in Python.
Programming System:
- Python: Teaches programming through Python, covering basic concepts in a gradual and accessible way.
- Visual Environment: The kit allows conversion of programs into a visual format, facilitating understanding for beginners.
System Requirements:
- OS:
- Windows (7/8.1/10)
- Mac OS X 10.6 or later
- iOS 11 or later
- Android 5.0 or later
- Chrome OS
- CPU: Core2 Duo (E6700) or equivalent
- Memory: 2 GB or more
- USB Port: 2.0
Integrated Components:
- 5×5 RGB LED Matrix
- Buzzer
- 2 Pressure Buttons
- Light Sensor
- Temperature Sensor
- 3-axis Accelerometer
- 3-axis Gyroscope
- 3-axis Compass
Studuino:bit Central Unit:
- Dimensions: 60 x 60 x 25 mm (with casing)
- USB Connector: microB
- Wi-Fi: 802.11 b/g/n
- Bluetooth: Classic, BLE4.2 (dual mode)
- SoC: ESP32
- Flash Memory: 8 MB
- SRAM: 520 KB
- PSRAM: 8 MB
- Clock Speed: 240 MHz
- Operating Voltage: 3.3V
- Communication Protocol: Windows/Mac
- Equipped with USB Serial Converter IC
- Driver Support: Windows 10 or later, Mac, iPad/tablets Android/Chromebooks
- BLE Communication
Power Supply:
USB, 3 x AA/R6 (alkaline only)
Robot Expansion Unit:
- Dimensions: 80 x 110 x 25 mm (with casing)
- Compatible Components: Servo motors, LEDs, buzzers (up to 4), light sensor, IR photoreflector, sound sensor, touch sensor, temperature sensor (up to 3), accelerometer, gyroscope (1)
- Power Supply: USB, 3 x AA/R6 (alkaline only)
Visual Programming Based on Scratch 3.0
The ArtecRobo 2.0 Mecha Builder is perfect for exploring robotics components and learning how to build complex and functional robots. The kit includes 7 assembly examples, allowing students to build everything from robot cars to gate systems and battle robots. With a solid base of detailed instructions, the Mecha Builder offers an excellent introduction to the world of robotics and programming, promoting practical and fun learning.
Assembly Examples:
- Robot Car with Arm
- Battle Robot
- Gate System
- Robot Car
- Conveyor
- Traffic Signs
- Walking Robot
Box Content
- 1 Studuino:bit Core Unit
- 1 Robot Expansion Unit
- 1 Battery box 2.0
- 2 DC motor
- 4 Servomotors
- 1 USB Cable microB
- 2 IR Photoreflector
- 1 Touch sensor
- 1 Sound sensor
- 1 Accelerometer
- 1 LED (red)
- 2 Sensor connecting cable (3-wire, 15cm)
- 2 Sensor connecting cable (3-wire, 30cm)
- 2 Sensor connecting cable (4-wire, 30cm)
- 57 Basic cube (various colors)
- 10 Triangle A (white, gray, clear)
- 10 Half A (red, white, gray)
- 20 Half B (blue,red,white)
- 30 Half C (light aqua)
- 18 Half D (aqua)
- 4 Beams
- 2 Gears (L)
- 2 Gears (S)
- 1 Gear rack
- 1 Axle
- 2 Tires
- 2 Disks
- 1 Block remover
Educational Material:
- Assembly and Programming Guide: Includes 7 practical robot examples with detailed instructions and explanations of how each component works.
- Teacher’s Manual: Provides a complete overview of the ArtecRobo 2.0 and guides educators in using the components and applying programming.
Programming System:
- Visual Programming: Based on Scratch 3.0, offers an easy-to-understand visual interface.
- Python: Programs created can be converted to Python, providing an easy transition to more advanced programming languages.
System Requirements:
- OS:
- Windows (7/8.1/10)
- Mac OS X 10.6 or later
- iOS 11 or later
- Android 5.0 or later
- Chrome OS
- CPU: Core2 Duo (E6700) or equivalent
- Memory: 2 GB or more
- USB Port: 2.0
Studuino:bit Central Unit:
- Dimensions: 60 x 60 x 25 mm (with casing)
- USB Connector: microB
- Wi-Fi: 802.11 b/g/n
- Bluetooth: Classic, BLE4.2 (dual mode)
- SoC: ESP32
- Flash Memory: 8 MB
- SRAM: 520 KB
- PSRAM: 8 MB
- Clock Speed: 240 MHz
- Operating Voltage: 3.3V
- Communication Protocol: Windows/Mac
- Equipped with USB Serial Converter IC
- Driver Support: Windows 10 or later, Mac, iPad/tablets Android/Chromebooks
- BLE Communication
Integrated Components:
- 5×5 RGB LED Matrix
- Buzzer
- 2 Pressure Buttons
- Light Sensor
- Temperature Sensor
- 3-axis Accelerometer
- 3-axis Gyroscope
- 3-axis Compass
Power Supply:
USB, 3 x AA/R6 (alkaline only)
Robot Expansion Unit:
- Dimensions: 80 x 110 x 25 mm (with casing)
- Compatible Components: Servo motors, LEDs, buzzers (up to 4), light sensor, IR photoreflector, sound sensor, touch sensor, temperature sensor (up to 3), accelerometer, gyroscope (1)
- Power Supply: USB, 3 x AA/R6 (alkaline only)
- Visual Programming Based on Scratch 3.0
The ArtecRobo 2.0 Game Maker is an innovative educational kit designed to teach programming and interactive game design using sensors and wireless connectivity. The kit offers 22 assembly examples that explore the different functions of the sensors, allowing students to develop exciting and interactive games with the help of touch, light, sound, and motion sensors. Each game serves as a practical introduction to game design and programming, making learning engaging and fun.
Assembly Examples:
- Balloon Pop
- Salon Beauty
- Camera
- Canoe Trip
- Crocodile Bite
- Daruma is Watching
- Desperate R.P.S. Game
- Driving Game
- Garbage Truck
- Firefighter
- Fishing Game
- Fossil Hunter
- Game Block
- Gunslinger
- Lucky Lottery
- Ninja Sword
- Rhythmic Maraca
- Rifle Game
- Sensory Guitar
- Smart Toilet
- Sonic Blade
- Trumpet
Contents of the Box:
- 1 Studuino:bit Central Unit
- 1 Robot Expansion Unit
- 1 Battery Box 2.0
- 1 DC Motor
- 1 Servo Motor
- 1 USB Cable (MicroB)
- 1 IR Photoreflector
- 1 Touch Sensor
- 2 Sensor Connection Cables (3 wires, 15 cm)
- 2 Sensor Connection Cables (3 wires, 30 cm)
- 100 Basic Cubes (Various Colors)
- 24 Triangular Blocks A (Various Colors)
- 24 Half A Blocks (Various Colors)
- 32 Half B Blocks (Various Colors)
- 8 Beams
- 4 Wheels
- 2 O-Rings
- 6 Axles
- 1 Block Remover
Programming System:
- Visual Programming: Based on Scratch 3.0, it facilitates the creation of interactive games and robots.
- Conversion to Python: Allows conversion of programs created in Scratch to Python, offering a transition to more advanced programming languages.
System Requirements:
- OS: Windows (7/8.1/10) / Mac OS X 10.6 or later / iOS 11 or later / Android 5.0 or later / Chrome OS
- CPU: Core2 Duo (E6700) or equivalent
- Memory: 2GB or more
- USB Port: 2.0
Studuino:bit Central Unit:
- Dimensions: 60 x 60 x 25 mm (with casing)
- USB Connector: MicroB
- Wi-Fi: 802.11 b/g/n
- Bluetooth: Classic, BLE4.2 (dual mode)
- SoC: ESP32
- Flash Memory: 8 MB
- SRAM: 520 KB
- PSRAM: 8 MB
- Clock Speed: 240 MHz
- Operating Voltage: 3.3V
- Communication Protocol: Windows/Mac
- Equipped with USB Serial Converter IC
- Driver Support: Windows 10 or later, Mac, iPad/tablets Android/Chromebooks
- BLE Communication
Integrated Components:
- 5×5 RGB LED Matrix
- Buzzer
- 2 Pressure Buttons
- Light Sensor
- Temperature Sensor
- 3-axis Accelerometer
- 3-axis Gyroscope
- 3-axis Compass
Power Supply:
USB, 3 x AA/R6 (alkaline only)
Robot Expansion Unit:
- Dimensions: 80 x 110 x 25 mm (with casing)
- Compatible Components: Servo motors, LEDs, buzzers (up to 4), light sensor, IR photoreflector, sound sensor, touch sensor, temperature sensor (up to 3), accelerometer, gyroscope (1)
- Power Supply: USB, 3 x AA/R6 (alkaline only)
The ArtecRobo 2.0 Basic 2.0 is an ideal kit for robotics beginners, offering simple assembly examples to explore sensor and component functions. This kit allows students to build basic robots and experiment with light, touch, and motion sensors, providing a hands-on and accessible introduction to the world of robotics and programming.
Contents of the Box:
- 1 Studuino:bit Central Unit
- 1 Robot Expansion Unit
- 1 Battery Box 2.0
- 2 DC Motors
- 1 Servo Motor
- 1 IR Photoreflector
- 3 LEDs (Red, Blue, Green)
- 2 Sensor Connection Cables (3 wires, 15 cm)
- 1 Sensor Connection Cable (3 wires, 30 cm)
- 16 Basic Cubes (Red, White, Black)
- 7 Triangular Blocks A (White)
- 2 Half A Blocks (Light Gray)
- 4 Half B Blocks (Blue)
- 10 Half C Blocks (Light Aqua)
- 4 Half D Blocks (Aqua)
- 4 Beams
- 2 Large Gears
- 2 Tires
- 2 Discs
- 2 Axles
- 1 Block Remover
Programming System:
- Visual Programming: Based on Scratch 3.0, allowing students to program intuitively and visually.
- Conversion to Python: The possibility of converting Scratch programs to Python makes it easier to advance learning.
System Requirements:
- OS: Windows (7/8.1/10) / Mac OS X 10.6 or later / iOS 11 or later / Android 5.0 or later / Chrome OS
- CPU: Core2 Duo (E6700) or equivalent
- Memory: 2GB or more
- USB Port: 2.0
Studuino:bit Central Unit:
- Dimensions: 60 x 60 x 25 mm (with casing)
- USB Connector: MicroB
- Wi-Fi: 802.11 b/g/n
- Bluetooth: Classic, BLE4.2 (dual mode)
- SoC: ESP32
- Flash Memory: 8 MB
- SRAM: 520 KB
- PSRAM: 8 MB
- Clock Speed: 240 MHz
- Operating Voltage: 3.3V
- Communication Protocol: Windows/Mac
- Equipped with USB Serial Converter IC
- Driver Support: Windows 10 or later, Mac, iPad/tablets Android/Chromebooks
- BLE Communication
Integrated Components:
- 5×5 RGB LED Matrix
- Buzzer
- 2 Pressure Buttons
- Light Sensor
- Temperature Sensor
- 3-axis Accelerometer
- 3-axis Gyroscope
- 3-axis Compass
Power Supply:
USB, 3 x AA/R6 (alkaline only)
Robot Expansion Unit:
- Dimensions: 80 x 110 x 25 mm (with casing)
- Compatible Components: Servo motors, LEDs, buzzers (up to 4), light sensor, IR photoreflector, sound sensor, touch sensor, temperature sensor (up to 3), accelerometer, gyroscope (1)
- Power Supply: USB, 3 x AA/R6 (alkaline only)
The ArtecRobo 2.0 Advanced 2.0 kit is designed for students who already understand basic concepts of robotics and programming. It offers advanced assemblies and allows the exploration of additional sensors and components, challenging students to develop more complex and interactive robots.
Contents of the Box:
- 1 Studuino:bit Central Unit
- 1 Robot Expansion Unit
- 1 Battery Box 2.0
- 2 DC Motors
- 4 Servo Motors
- 1 IR Photoreflector
- 1 Touch Sensor
- 1 Sound Sensor
- 1 Accelerometer
- 2 LEDs (Red, Blue)
- 1 USB Cable (MicroB)
- 4 Sensor Connection Cables (3 wires, 15 cm)
- 1 Sensor Connection Cable (3 wires, 30 cm)
- 1 Sensor Connection Cable (4 wires, 15 cm)
- 52 Basic Cubes (Various Colors)
- 14 Triangular Blocks A (White, Transparent, Black)
- 10 Half A Blocks (Various Colors)
- 16 Half B Blocks (Various Colors)
- 24 Half C Blocks (Various Colors)
- 18 Half D Blocks (Various Colors)
- 4 Beams
- 2 Large Gears
- 2 Small Gears
- 2 Gear Tracks
- 2 Tires
- 2 Discs
- 4 Axles
- 1 Block Remover
System Requirements:
- OS: Windows (7/8.1/10) / Mac OS X 10.6 or later / iOS 11 or later / Android 5.0 or later / Chrome OS
- CPU: Core2 Duo (E6700) or equivalent
- Memory: 2GB or more
- USB Port: 2.0
Studuino:bit Central Unit:
- Dimensions: 60 x 60 x 25 mm (with casing)
- USB Connector: MicroB
- Wi-Fi: 802.11 b/g/n
- Bluetooth: Classic, BLE4.2 (dual mode)
- SoC: ESP32
- Flash Memory: 8 MB
- SRAM: 520 KB
- PSRAM: 8 MB
- Clock Speed: 240 MHz
- Operating Voltage: 3.3V
- Communication Protocol: Windows/Mac
- Equipped with USB Serial Converter IC
- Driver Support: Windows 10 or later, Mac, iPad/tablets Android/Chromebooks
- BLE Communication
Integrated Components:
- 5×5 RGB LED Matrix
- Buzzer
- 2 Pressure Buttons
- Light Sensor
- Temperature Sensor
- 3-axis Accelerometer
- 3-axis Gyroscope
- 3-axis Compass
Power Supply:
USB, 3 x AA/R6 (alkaline only)
Robot Expansion Unit:
- Dimensions: 80 x 110 x 25 mm (with casing)
- Compatible Components: Servo motors, LEDs, buzzers (up to 4), light sensor, IR photoreflector, sound sensor, touch sensor, temperature sensor (up to 3), accelerometer, gyroscope (1)
- Power Supply: USB, 3 x AA/R6 (alkaline only)
Programming Software

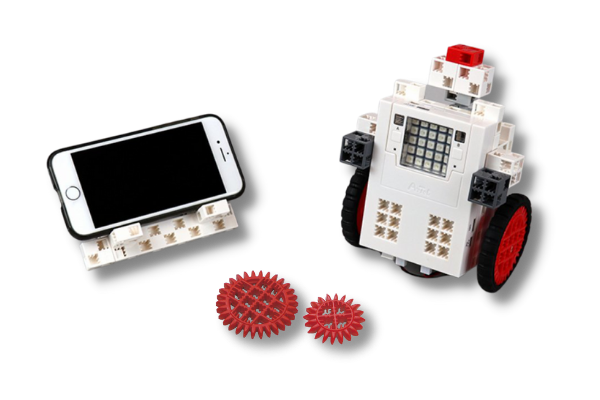

Studuino:bit Core Unit, Software, Programming environment
No assembly required!
Enhanced hardware
Wi-Fi compatibility
System Requirements
- OS: Windows ( 7/8.1/10) / Mac OS X 10.6 or later / iOS11 or later / Android5.0 or later / Chrome OS
- CPU: Core2 Duo (E6700) higher or equivalent
- Memory: 2GB or more
- USB: 2.0 port

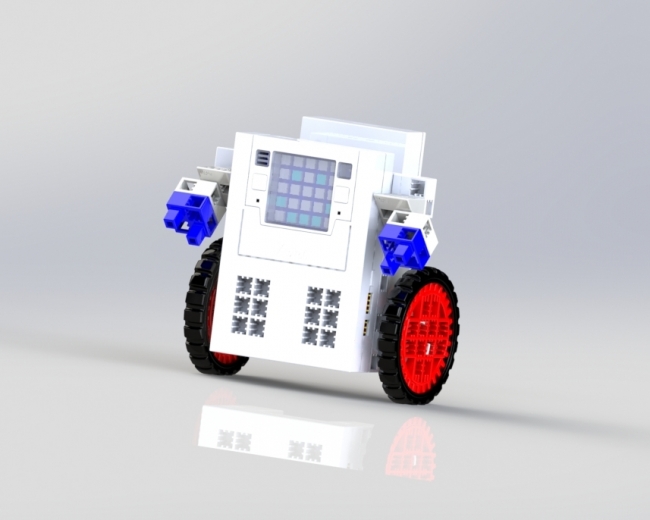

Studuino:bit Core Unit
- Dimensions: 60 x 60 x 25 mm (in case)
- USB Connector: microB
- Wi-Fi: 802.11 b/g/n
- Bluetooth: Clasic, BLE4.2 (dual mode)
- SoC: ESP32
- Flash Memory: 8 MB
- SRAM: 520 KB
- PSRAM: 8 MB
- Clock Speed: 240 MHz
- Operating Voltage: 3.3V
- Communication Protocol: Windows/Mac
- Equipped with USB Serial Converter IC
- ★ Device drivers support Windows 10 or later, Mac, iPad/Android tablets/Cromebook
- BLE communications
- Built-in components: 5×5 full-color LED matrix, buzzer, 2 push buttons, light sensor, temperature sensor, 3-axis accelerometer, 3-axis giroscope, 3-axis compass
- Power Supply: USB, 3 x AA/R6 batteries (only alkaline)
Robot Expansion Unit
- Dimensions: 80 x 110 x 25 mm (in case)
- Compatible components: Servomotor, LED, buzzer (up to 4) light sensor, IR photoreflector, sound sensor, touch sensor, temperature sensor (up to 3) accelerometer, gyroscope (1)
- Power Supply: USB, 3 x AA/R6 batteries (only alkaline)
Visual Programming Software Based on Scratch 3.0
Convert to Python
Access Digital Content
Tutorials Included
Visual Programming Software Based on Scratch 3.0

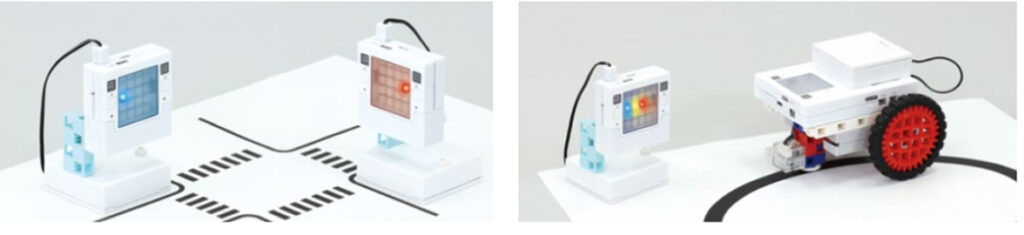

Interconnecting Devices
ArtecRobo 2.0 lets you build complex systems that use multiple devices at once by connecting them with wireless communications. Don’t stop at making one traficc signal, make a whole network of coordinated signals and cars that stop and go automatically!
Building a Multi-Device System
Use inter-device communications to make programs that can send messages and connect multiple computers. Use messaging systems to detect intruders and learn about IoT!
Teaching Material
Assembly Instructions, Student and Teacher Textbooks
For educators
The ArtecRobo 2.0 sets can help in teaching robotics and programming concepts to students at any level of schooling; from drawing shapes with Scratch, making robot move, controlling robots with sensors, building and using networks to learning text-based programming, the ArtecRobo 2.0 technology serves as a facilitator in any given classroom.
Prime Code Core Set
The ArtecRobo 2.0 Prime Code comes with a well-structured and comprehensive curriculum for a 2-year, 96-lesson course which covers topics such as robotics, IoT and AI.
All of the materials are available online and can be accessed through a web browser and/or document-based app called Typora.
Main topics:
- Basic Python syntax
- Object-oriented programming
- Robotics technologies
- Network technologies
- Database technologies
- Information security technologies
Simple Kit Python Edition
Mecha Builder
Assembly Instructions:
Game Maker
Assembly Instructions:
- – Baloon Pop
- – Beauty Salon
- – Camera
- – Canoe Trip
- – Crocodile Bites
- – Daruma is Watching
- – Desperate R.P.S
- – Driving Game
- – Dump Truck
- – Fire Fighter
- – Fishing Game
- – Fossil Finder
- – Game Block
- – Gunslinger
- – Lucky Lottery
- – Ninja Sword
- – Rhytmic Maraca
- – Rifle Game
- – Sensor Guitar
- – Smart Toilet
- – Sonic Blade
- – Trumpet
Basic 2.0
Advanced 2.0
The Advanced 2.0 Kit comes with 5 assembly examples that explore various sensor functions available; the educator can guide the students to follow the instructions and understand the functions correctly.
For students
One of the best things about the ArtecRobo 2.0 Kits is how much more concepts can be taught thanks to its innovative hardware and software. Students can get a real understanding of the world's leading technology by creating and programming their own robots, making the learning experience a lot more fun.
Prime Code Core Set
The ArtecRobo 2.0 Prime Code online study guides seamlessly introduce the Python language to students. Each online guide comes with plenty of online videos on every topic to use as a visual guide.
Simple Kit Python Edition
Mecha Builder
Game Maker
